Gym Divider Curtains



High quality divider curtains and nets for maximizing space in gymnasiums and sporting facilities of all shapes and sizes.

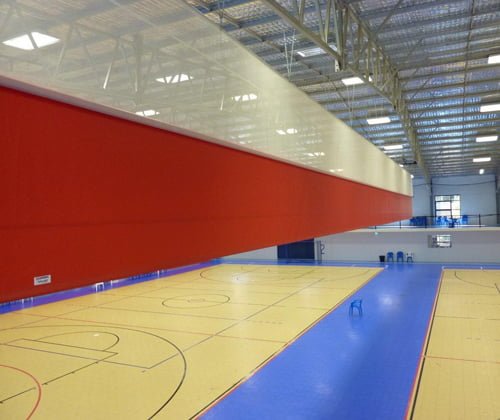

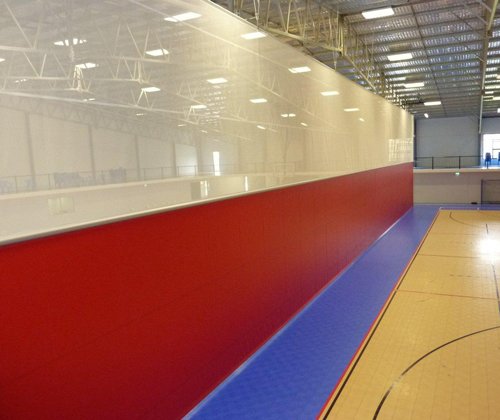

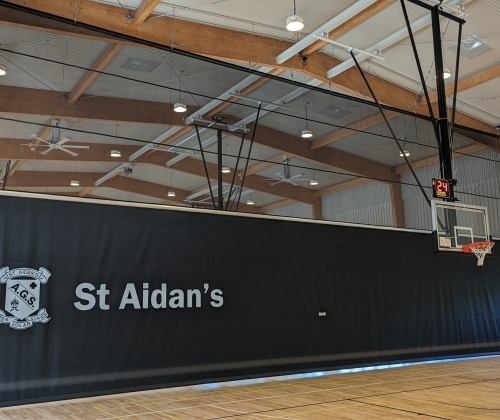

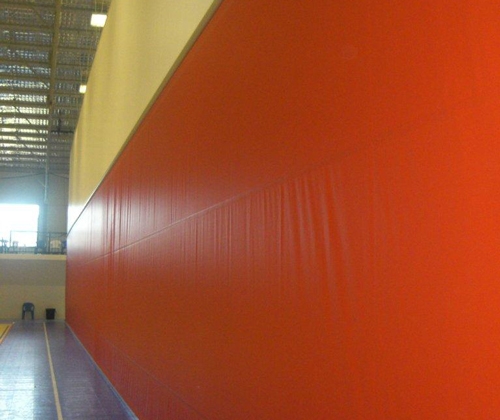

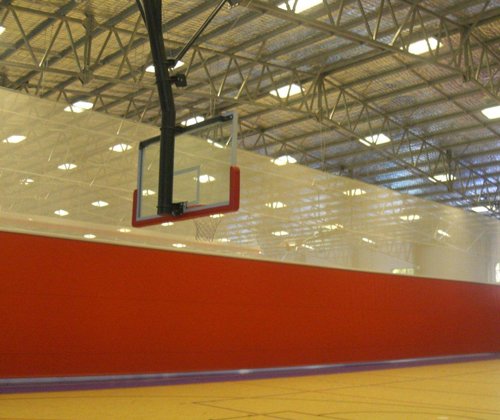

Stadia Centre Roll Up Dividing Curtain

The most versatile and innovative divider curtains on the market for gymnasiums, indoor basketball courts, and sporting facilities.

Our Center Drive Curtain’s unique internal tubular motors provide much faster raising / lowering speeds than other brands on the market today.

  • Gym separation curtain simply winds up on a center drum
  • Operated by one or two internal tubular motors, depending on the curtain size Each motor has an extraordinary amount of torque with a speed of 14rpm
  • Motors are equipped with integral up and down limit switches with locking push buttons and electromagnetic disk brakes for smooth and accurate stop without slippage
  • Full braking power in the event of power failure
  • Internal motor system is elegantly designed with no wires or cables exposed
  • Internal drive shaft motors allow for lower power and torque requirements to move with similar speed as standard external motors
  • Our torque arm is a revolutionary new feature that does not require any connection to the structure for resistance against movement, which provides a clean and simple installation process
  • Vinyl is fire retardant rated and mildew resistant Seams are electronically welded, not sewn Mesh is used instead of netting
  • Key operated electric winch with auto height cut out. Standard key switch, or optional keypad / wireless remote
  • No expensive support structure required

For more information download our Stadia Centre Roll Up Dividing Curtain Brochure.

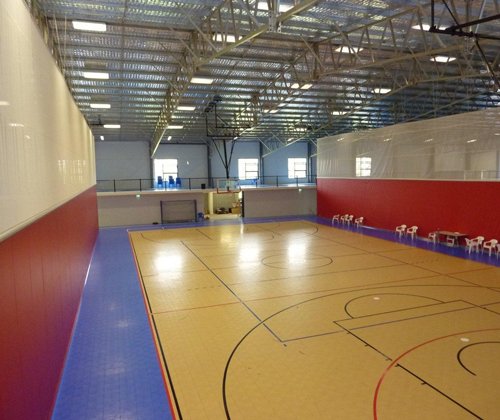

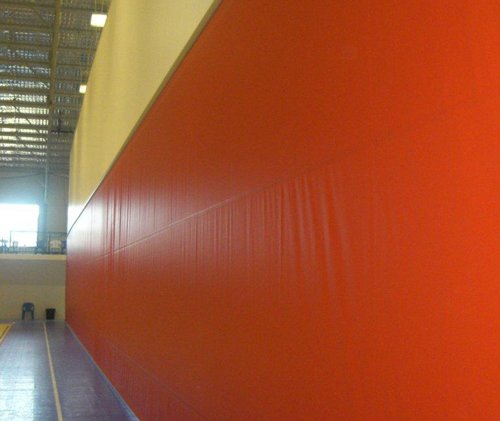

Stadia roll curtains Stadia roll curtains

Essential Fold Up Gym Dividing Curtain

The new economical concertina dividing curtain uses fire retardant and mildew resistant vinyl and mesh to provide durable, functional, and affordable space management. This versatile fold up separation curtain provides an easy way to divide your space without sacrificing safety or quality.

  • Features 1HP electric operation via standard key switch, optional keypad or wireless remote
  • Durable mesh is used instead of netting, as nets tend to unravel, wear and break down over time
  • 540gm or 625gm vinyl lower section and 255gm vinyl coated mesh upper section with welded seams and fully padded batten with no exposed hardware
  • Heavy 3.5mm aircraft grade steel cable retracts via a rotating top drum for an elegant and clean appearance
  • Top axle with spools instead of multi path pulley and rope retraction to allow for
  • simple operation and lower maintenance
  • Drive Motor includes switchgear with dual key delay system so motors cannot be reversed and burned out
  • Safety break arrestors are standard. Curtain lock safety device locks drive shaft if speed exceeds 0.5m per second
  • Straight or curve design available
  • No expensive support structure required

For more information download our Fold Up Dividing Curtain Brochure.

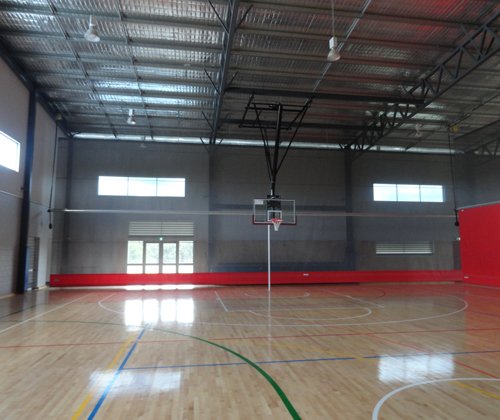

Essential Curtains Essential Curtains

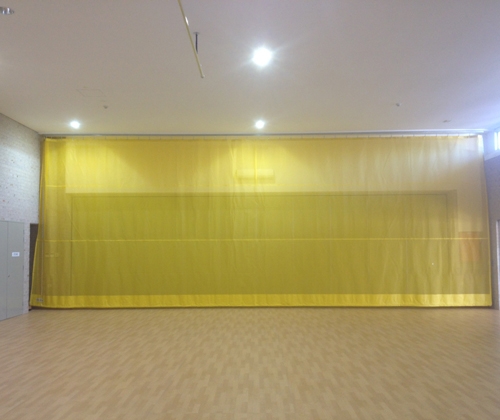

Walk Drawn Dividing Curtain

The perfect cost-effective solution for budget conscious facilities. These walk draw divider curtains offer an economical way to easily separate different courts without sacrificing quality or performance.

  • Uses the same high-quality vinyl as our motorised systems (no netting) Easy operation – manually drawn to the side when not required
  • Runs on galvanised steel tracks with quality multi-wheeled carriages to ensure simple, smooth, and hassle-free operation
  • Two options available for storage in either a straight or curved stack
  • Systems can be stored inside a purpose-built cupboard if incorporated during the building design

For more information download our Walk Drawn Dividing Curtain Brochure.

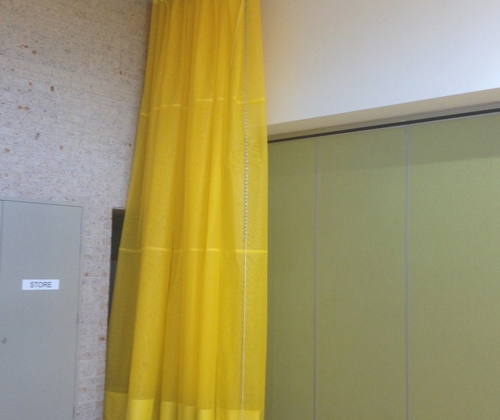

Walk drawn curtains Walk drawn curtains

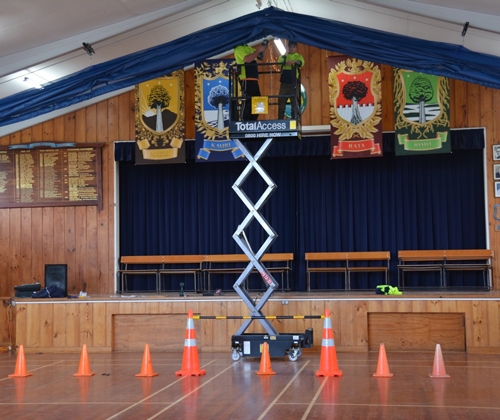

Peak Fold Gymnasium Dividing Curtain

The peak-fold gym divider curtain is the perfect solution where sloped ceilings require an innovative use of space. The new, clever design can be erected without any restrictions and will fit nearly any roofline and ceiling slope perfectly.

  • Folds as it retracts to the same apex as the roof with minimal drop
  • Features 1HP electric operation via standard key switch, optional keypad or wireless remote
  • Durable mesh is used instead of netting, as nets tend to unravel, wear and break down over time
  • Features 540gm or 625gm vinyl lower section and 255gm vinyl coated mesh upper section with welded seams and fully padded batten with no exposed hardware
  • Heavy 3.5mm aircraft grade steel cable retracts via a rotating top drum for an elegant and clean appearance
  • Custom engineered variable diameter cable drums match individual cable travel to the ceiling slope

For more information download our Peak Fold Up Dividing Curtain Brochure.

Peak fold curtain Peak fold curtain
Peak fold curtain Peak fold curtain
Peak fold curtain Peak fold curtain
Peak fold curtain Peak fold curtain

Top Roll Up Gym Divider Curtain

Using the same high-quality and durable parts as the Stadia Centre Roll Curtain, the Roll Up Gym Divider Curtain is an elegant solution for any sporting facility.

With a state-of-the-art top drum hoisting system the Roll Up Gym Divider Curtain can be effortlessly raised or lowered to create the space you need.

  • No cables or straps used
  • Curtain simply and quickly winds up on a top drum
  • Depending on the curtain size, it is operated by one or two internal tubular motors Each motor has an extraordinary amount of torque with a speed of 14rpm
  • Motors are equipped with integral up and down limit switches with locking push buttons and electromagnetic disk brakes for smooth and accurate stop without slippage
  • Full braking power in the event of power failure
  • Internal motor system is elegantly designed with no wires or cables exposed
  • Internal driveshaft motors allow for lower power and torque requirements to move with similar speed as standard external motors
  • Key operated electric motors with auto height cut out Standard key switch, optional key pad or wireless remote Vinyl is fire retardant, mildew resistant
  • Seams are electronically welded, not sewn
  • Durable mesh is used instead of netting
  • Retracts and stores neatly – ideal for hiding inside bulkhead

For more information download our Top Roll Up Gym Divider Curtain Brochure.



Radius Fold Gymnasium Dividing Curtain

The Radius Folding Gym Divider Curtain is the perfect solution for maximisng space inside multi-purpose sporting facilities.

Designed to follow contours and achieve curves with a single dividing curtain, this gymnasium divider is ideal for separating running tracks from other sporting courts without needing to compromise on cost or quality.

  • Features 1HP electric operation via standard key switch, optional key pad or wireless remote
  • Quality mesh is used instead of netting as netting often unravels, wears and breaks down over time
  • Features 540gm or 625gm vinyl lower section and 255gm vinyl coated mesh upper section with welded seams and fully padded batten with no exposed hardware
  • Heavy 3.5mm aircraft grade steel cable retracts via a rotating top drum for a clean and tidy appearance
  • Top axle with spools, instead of multi path pulley and rope retraction, allows for simple operation and lower maintenance
  • Drive motor include switchgear with dual key delay system so motors cannot be reversed and burned out
  • Safety break arrestors are standard. Curtain lock safety device locks drive shaft if speed exceeds 0.5m per second
  • Unique design utilising double universal joints allows the curtain to follow the exact radius of the track
  • No expensive support structure required

For more information download our Radius Fold Gymnasium Dividing Curtain Brochure.

Retractable Indoor Batting Cage Nets

Our fully retractable indoor batting cage system is the latest innovation where indoor practice facilities are required.

Suitable as indoor cricket nets, baseball net cages, and other indoor batting cage nets, our retractable batting cage systems are the ultimate solution for multi-purpose sporting facilities.

  • Fully motorised for easy deployment
  • Complete with integrated roof, the system is operated by key switch Two, three or four side walls can be erected as required
  • Fully customisable sizing, mesh thickness etc. to suit your requirements

Colour Options For All Dividing Curtains

Our gymnasium divers and curtains are made from high-quality materials that last and are available in a range of colours to suit your specific requirements.

Our vinyl gym curtain colours include:

  • Marine Blue
  • Royal Blue
  • Yellow
  • Kelly Green
  • Orange
  • Black
  • Forest Green
  • Red
  • Maroon
  • White
  • Beige
  • Grey

Our mesh gym curtain colours include:

  • White
  • Yellow
  • Green
  • Red
  • Blue
  • Black
  • Gray



View our curtain mesh and vinyl colour samples brochure.

Curtain & Divider Related Products and Accessories

Edit
TSC1500 TSC1500 Touch pads to run various equipment at once. Replace multiple key switches with one panel. No keys, just user PIN numbers. Can operate multiple equipment at once as a “group” or individually.
TSC1500XL TSC1500XL Touch screen to run various equipment at once. Replace multiple key switches with one panel. No keys, just easy touch screen control. Can operate multiple equipment at once as a “group” or individually.
COLOUR To view the available colours for the vinyl and mesh click here.
BBSS Safety strap for dividing curtains – excludes fittings.
Remote control BBESEWR Remote Control upgrade for electric motors for court dividing curtains. With the correct wiring, both remote and key switch can be used. Must be ordered at the same time as the curtain.

Other Related Products

HiTech Sports also supply high quality indoor basketball systems, stadia, scoreboards and more.

Contact us at any time for more information about related products and services, or to discuss your project’s specific requirements.
